Crawl Space Repair Before & After Photos

We encapsulated the crawl space by sealing it at all interior footings, piers, and along the top edge of the foundation walls to prevent moisture intrusion. A drainage mat was installed beneath the liner and extended 6 inches up the walls to help manage ground seepage and add durability to the surface. We repaired a foundation crack by injecting it with polyurethane resin under high pressure and reinforcing the area with a structural weave, providing a flexible and long-lasting seal. We installed a dehumidifier and air purifier system to maintain healthy humidity levels.

This project focused on creating a cleaner and drier crawl space by improving humidity control and overall air quality.

We started by cleaning the area, wiping down heating ducts and sewer lines, removing spider webs, and clearing loose debris from the floor.

A dehumidifier was then installed on a dedicated stand to continuously monitor and reduce excess humidity. A condensate pump was also added to automatically remove the water collected by the dehumidifier, helping the system run efficiently without water building up in the space.

The result is a cleaner, drier crawl space with better humidity control, helping reduce the conditions that can lead to musty odours and moisture-related problems.

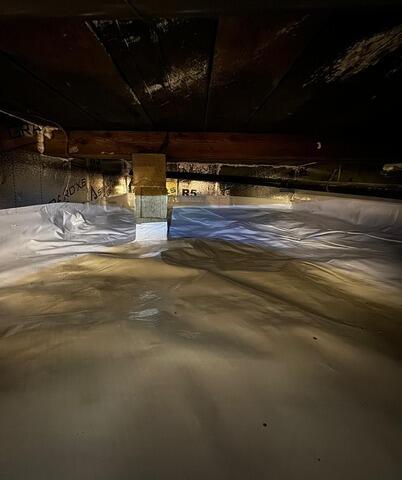

This project focused on sealing, stabilizing, and improving the overall condition of the crawl space. The work began by regrading the soil, smoothing the surface, removing large rocks, and filling in gaps around the main sewer outlet to create a clean and even base.

A full crawl space encapsulation system was installed and carefully sealed around footings, piers, and along the foundation walls to keep moisture out. During the installation, the existing adjustable support jacks were temporarily removed so the liner could be properly placed. Once complete, the jacks were reinstalled on top of the liner and tightened to stabilize the support beam. The bottoms of the piers were also wrapped for added protection.

A drainage layer was added beneath the liner and extended up the walls to help manage ground moisture and improve durability. The foundation walls were then insulated, with all seams sealed to reduce drafts and prevent moisture intrusion.

To finish the project, a foundation crack was repaired using a flexible injection to stop water entry, followed by a carbon fiber reinforcement to strengthen the wall.

These improvements resulted in a cleaner, drier, and more stable crawl space built for long-term protection and peace of mind.

Installation of our Smart Sump Pump System with Cleanspace and R13 Rigid Board Insulation,

This project focused on deep cleaning and sanitizing the crawl space. The team wiped down heating ducts and sewer lines, removed spider webs, cleared loose debris from the floor, and vacuumed the entire area. All concrete surfaces were then disinfected with a germicidal treatment to eliminate any traces of rodent activity, leaving the space clean, safe, and refreshed.
